MFAA Chapter 5 Laboratory

Liquidity Shock Simulator (book §5.9)

Manage an illiquid position through liquidity cycles and funding shocks; watch realizable value diverge from fundamental value; price the divergence with the operator L. Seed 20260500.

import sys, numpy as np, matplotlib.pyplot as plt
sys.path.insert(0,'..')
from engine import ch05
from dataclasses import replace

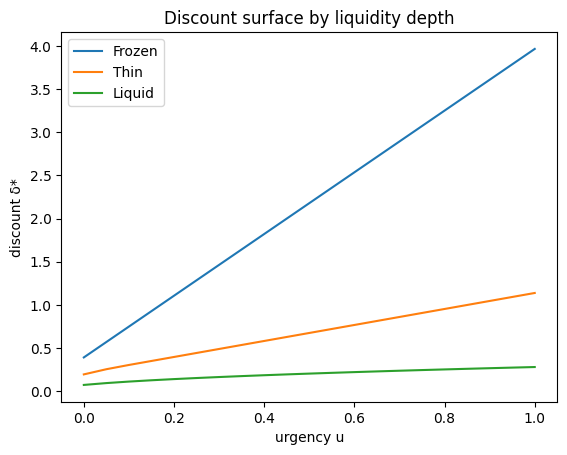

1. The reservation value and the discount surface δ*(u, ν) (Proposition 5.5)

p = ch05.LiquidityParams()
surf = ch05.discount_surface(p)
for st in surf['states']:
    plt.plot(surf['urgency'], surf['discount'][st], label=st)
plt.xlabel('urgency u'); plt.ylabel('discount δ*'); plt.legend(); plt.title('Discount surface by liquidity depth');

Discount rises with urgency (movement along a curve) and falls with depth (jump across curves) — the chapter’s quantitative signature.

2. E4 / Ex 5.7 — holding-period Mellin transform

Closed forms 0.9346 (θ=1) and 0.9281 (θ=2); variance finite iff ν+2(ρ−g)−σ²>0.

pa = ch05.LiquidityParams(rho=0.10, g=0.03, sigma_V=0.25, V0=1.0)
for th in (1.0, 2.0):
    m = ch05.mellin_transform(th, pa, 1.0)
    print(f'theta={th}: closed form {m["value"]:.4f}, finite={m["finite"]}')
hp = ch05.holding_period_simulation(pa, 1.0)
for k,v in hp.items(): print(f'  {k}: sim {v["sim_mean"]:.4f} ± {v["sim_se"]:.4f} vs closed {v["closed_form"]:.4f}')
print('variance finiteness:', ch05.variance_finiteness(pa, 1.0))
theta=1.0: closed form 0.9346, finite=True
theta=2.0: closed form 0.9281, finite=True
  theta_1: sim 0.9364 ± 0.0017 vs closed 0.9346
  theta_2: sim 0.9328 ± 0.0036 vs closed 0.9281
variance finiteness: {'boundary': 1.0775000000000001, 'finite': True}

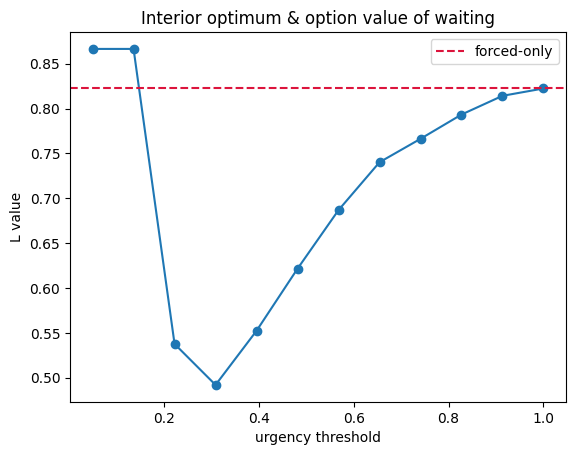

3. E2 — Option value of waiting

pc = ch05.policy_comparison(replace(p, M=6000))
ths=[r['threshold'] for r in pc['rows']]; vals=[r['L_value'] for r in pc['rows']]
plt.plot(ths, vals, 'o-'); plt.axhline(pc['forced_only'], color='crimson', ls='--', label='forced-only')
plt.xlabel('urgency threshold'); plt.ylabel('L value'); plt.legend(); plt.title('Interior optimum & option value of waiting')
print(f"interior optimum at threshold {pc['interior_optimum']['threshold']:.2f}, option value {pc['option_value_of_waiting']:.4f}")
interior optimum at threshold 0.05, option value 0.0441

4. Validation checks

v = ch05.validation_checks()
for k,d in v.items():
    if isinstance(d,dict): print(k, 'PASS' if d['pass_'] else 'FAIL')
print('ALL:', v['all_pass'])
V1_reservation PASS
V2_mellin PASS
V3_monotone PASS
V4_forced_dominated PASS
V5_reproducible PASS
ALL: True
